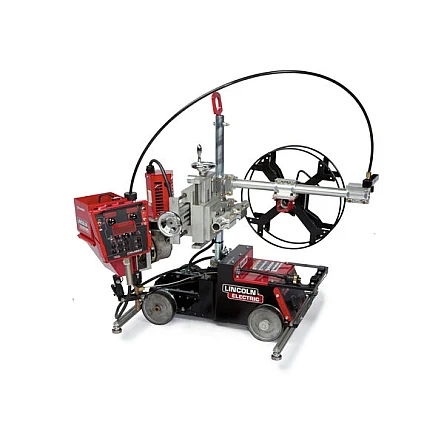

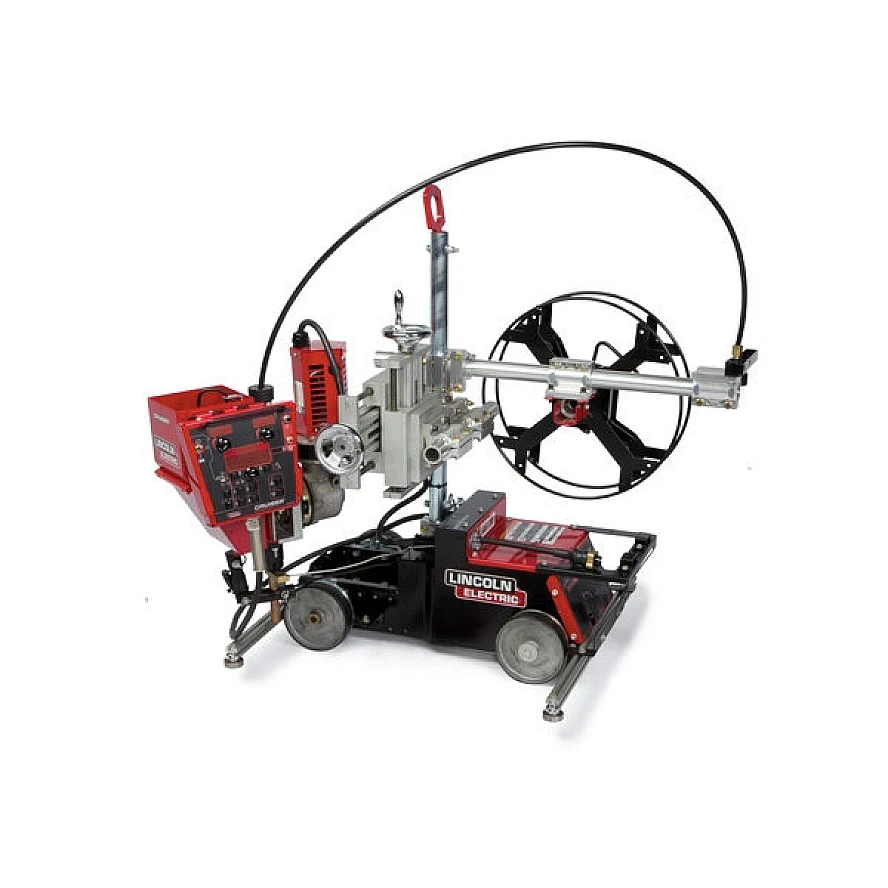

Lincoln Electric Lincoln Cruiser® Submerged Arc Welding Tractor
The self propelled, modular Cruiser® travel carriage, paired with the Power Wave® AC/DC 1000® SD power source, can deliver deposition rates up to 30 lbs (13.61 kg) per hour. The Cruiser® SAW tractor is perfect for lengthy butt and fillet joints common to the welding application of bridge or barge decking, large tank fabrication, and shipbuilding.
Eigenschaften

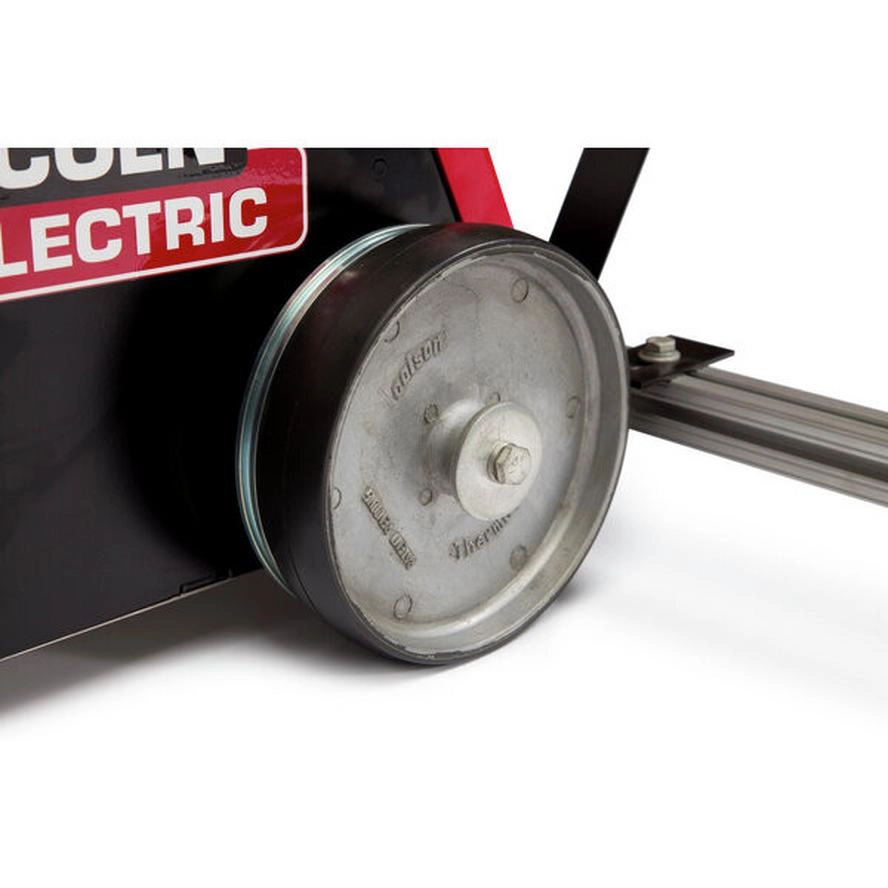

- Reliable Operation – Strong, rigid and stiff especially where you need it most. Sturdy welded base frame. Substantial steel mast stands up to daily construction site use. Simple cast wheels – Equipped with high temperature and slip resistant rubber tires. Robust tube and clamp design – Troublefree feeding component mounting. Adjustable extended length outriggers– Make it easy to guide tractor movement.
- Advanced Control Pendant - Removable, lightweight, impact resistant aluminum user interface can be used to save procedures, apply limits and lockouts for any or all controls.
- Common Expendable Parts - All drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa submerged arc wire drives.
- Multiple Configurations - Flexible system allows set up with or without a track and three or four wheel operation.
Zusammenfassung
Eigenschaften
Reliable Operation – Strong, rigid and stiff especially where you need it most. Sturdy welded base frame. Substantial steel mast stands up to daily construction site use. Simple cast wheels – Equipped with high temperature and slip resistant rubber tires. Robust tube and clamp design – Troublefree feeding component mounting. Adjustable extended length outriggers– Make it easy to guide tractor movement.
Advanced Control Pendant - Removable, lightweight, impact resistant aluminum user interface can be used to save procedures, apply limits and lockouts for any or all controls.
Common Expendable Parts - All drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa submerged arc wire drives.
Multiple Configurations - Flexible system allows set up with or without a track and three or four wheel operation.

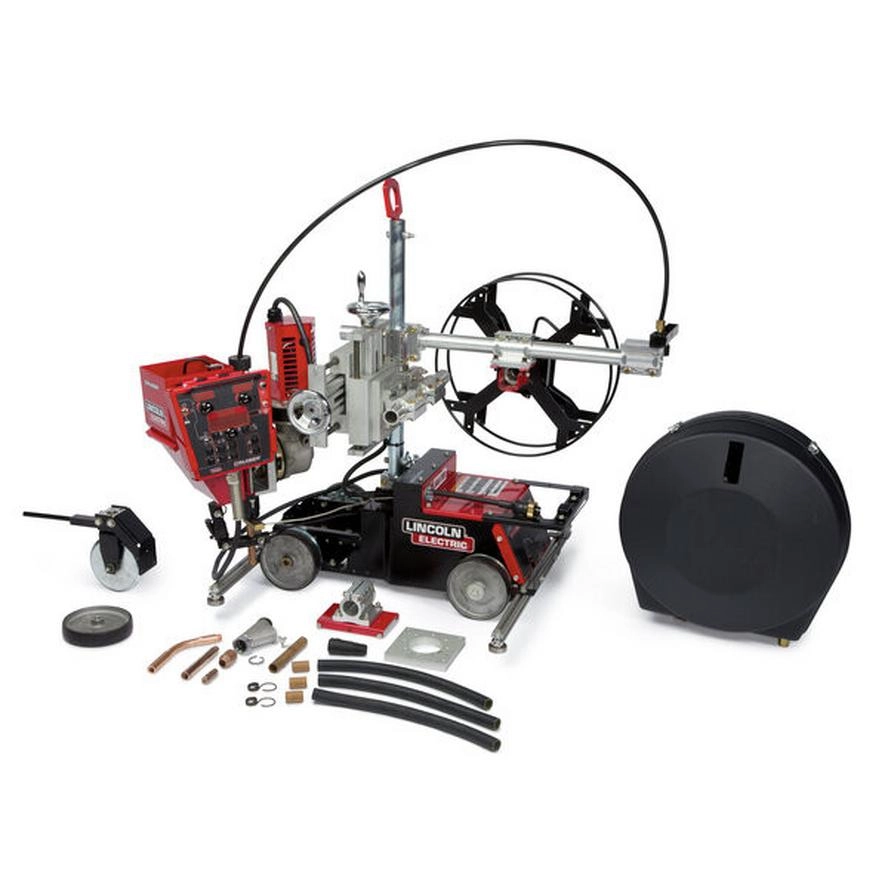

Lieferumfang
Schutzschlauch 1.5 m
4 mm 600 A Kontaktdüsensystem
4 mm Kontaktspitze
Düsenverlängerung 127 mm
Gebogene Düsenverlängerung 45°
Isolierung der Düsenverlängerung
Pulverzuführschlauch und Pulverschlauchklemmen
Drahtspulensystem
Räder für den mobilen Einsatz
Ausleger vorn und hinten
Geschlossene Drahtspule (2 für Tandem)
Hinweis: Steuerkabel nicht enthalten.
Reliable Operation – Strong, rigid and stiff especially where you need it most. Sturdy welded base frame. Substantial steel mast stands up to daily construction site use. Simple cast wheels – Equipped with high temperature and slip resistant rubber tires. Robust tube and clamp design – Troublefree feeding component mounting. Adjustable extended length outriggers– Make it easy to guide tractor movement.
Advanced Control Pendant - Removable, lightweight, impact resistant aluminum user interface can be used to save procedures, apply limits and lockouts for any or all controls.
Common Expendable Parts - All drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa submerged arc wire drives.
Multiple Configurations - Flexible system allows set up with or without a track and three or four wheel operation.
Lieferumfang
Schutzschlauch 1.5 m
4 mm 600 A Kontaktdüsensystem
4 mm Kontaktspitze
Düsenverlängerung 127 mm
Gebogene Düsenverlängerung 45°
Isolierung der Düsenverlängerung
Pulverzuführschlauch und Pulverschlauchklemmen
Drahtspulensystem
Räder für den mobilen Einsatz
Ausleger vorn und hinten
Geschlossene Drahtspule (2 für Tandem)
Hinweis: Steuerkabel nicht enthalten.
